Removing the Transmissions Cable And Connector

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

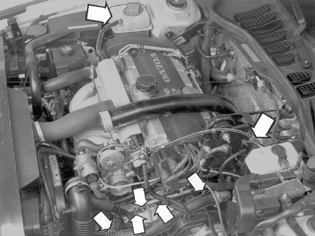

Fig 1: Identifying Cable Harness & Earth Cable Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The transmission cable from the transmission.
Connector from the gearbox. Note the rubber seal.
The clamps to the cable harness and ground cable on the gearbox alternatively sub-frame.

NOTE: The fastening points can vary depending on the model year.

Earlier version:

The gearbox's air vent hose from the clamp.

Later version:

Remove/unhooked the cable conduit from the gearbox
Removed the heated oxygen sensor's connector from the bracket on the gearbox.

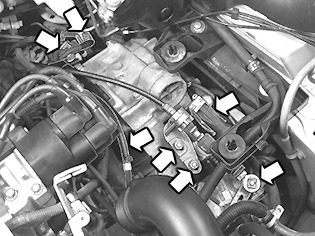

Fig 2: Identifying Gearbox Oil Cooler Hoses & Oil Dipstick Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the hoses to the gearbox's oil cooler.

The supply hose by the cooler's upper snap-on coupling and return hose by the gearbox.

Remove the oil dipstick pipe.

Seal all openings with plastic plugs.

Vehicles with EGR: Remove the hoses from the converter.

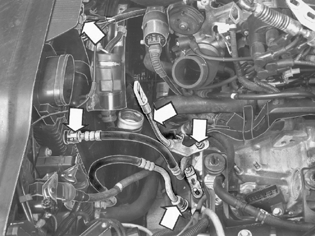

Fig 3: Identifying Screws Between Gearbox-Engine & Gearbox-Starter Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut on the rear engine pad.

Remove:

The screws between the gearbox-engine and gearbox-starter motor (x5).

Lift the cooler's expansion tank from the bracket and let it hang free.

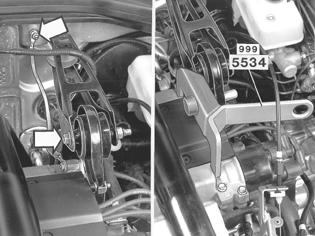

Fig 4: Identifying Lifting Fork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the ground braid from the firewall.

Remove the screw to the torque stay-torque arm by the engine.

Install the lifting fork 9995534 for the torque stay/engine.
