Loosen the Right Drive Shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

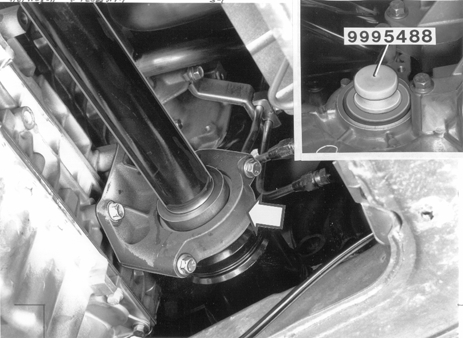

Fig 1: Identifying Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bearing cap. Pull out the inner section of the drive shaft and fold out the spring strut at the same time.

NOTE: Take care not to damage the seal in the transmission.

Install the seal plug 9995488 in the gearbox.

Let the drive shaft rest on the sub/frame. Secure the drive shaft end with tape by the pipe bend.

Right-hand drive cars only:

Let the drive shaft end rest temporarily on the oil pipe.
