Relays, Fuse Boxes And Wiring: Notes
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

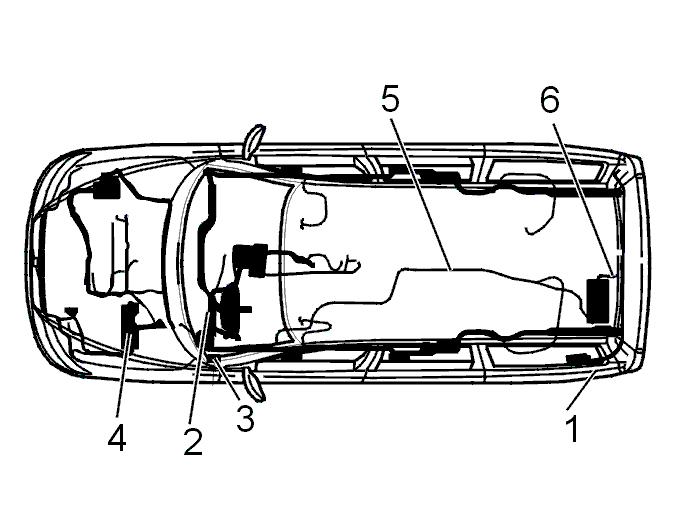

- Integrated relay/fusebox in the cargo compartment, rear electronic module
- Relay box in the passenger compartment, central electronic module (CEM)
- Fusebox in the passenger compartment
- Integrated relay/fusebox in engine compartment
- Cable harness
- Ground cable, battery.
