Remove constant velocity joint from drive shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

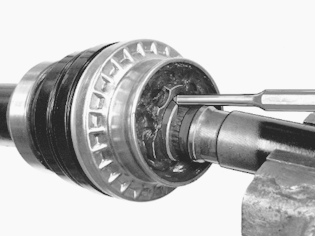

Fig 1: Identifying Inner Constant Velocity Joint Tapped Out Using Brass Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the circlip so it disengages from the locking groove.
Tap out the inner ring onto the shaft a few millimeters, so that the circlip will stay open.
Use a brass drift to tap out the inner constant velocity joint.

CAUTION:

Only tap the inner ring so as not to damage the ball housing or outer ring.
