Clean CV constant velocity joint thoroughly

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

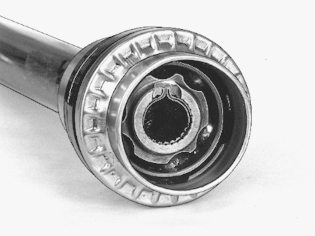

Fig 1: Identifying Constant Velocity Joint
GLL126291Courtesy of VOLVO CARS OF NORTH AMERICA.

The constant velocity joint must be cleaned assembled as it cannot be disassembled.
