Install new circlip in constant velocity joint

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

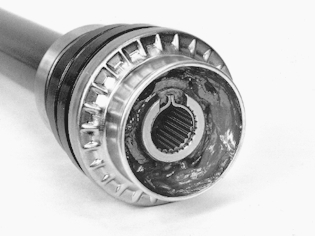

Fig 1: Identifying Circlip And Grease In Constant Velocity Joint
GLL125661Courtesy of VOLVO CARS OF NORTH AMERICA.

Grease constant velocity joint. See Drive shafts, installing .

Check that boot is undamaged; alternatively install new boot on the outer shaft.
