Assembly of inner and outer drive shafts:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

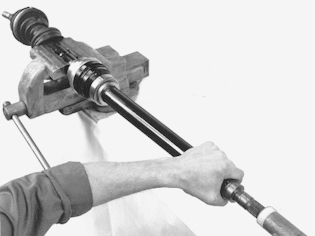

Fig 1: Identifying Outer Drive Shaft Mounted In Vise

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mount the outer drive shaft in a vise

Ensure that inner ring is square in the constant velocity joint.

Tap on shaft to joint

Check the circlip has seated in its groove.
