Removing the right drive shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Rubber Seal On Constant Velocity Joint
GLL106610Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

Later models have a rubber seal on the constant velocity joint. Do not damage the seal. It will be needed for installation.

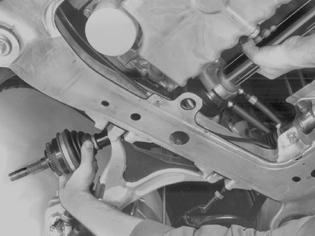

Fig 2: Identifying Drive Shaft Pulled Out From Transmission
GLL125655Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the right bearing cap for the drive shaft support bearing.

Pull the drive shaft out of the transmission. Pull the inner section of the shaft.
