Removing the bracket for the brake pipe and the ABS cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

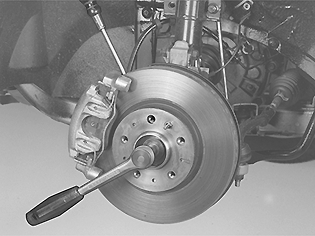

Fig 1: Identifying Front Plastic Nut(s) For Fender Liner And Left Drive Shaft Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the bracket and let it hang free.

Remove the drive shaft screw

Use a screwdriver as a counterhold.

Detach the drive shaft end at the hub Tap in the shaft end approximately 10-15 mm . Use a rubber or copper mallet.
