Removing the ball joint
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

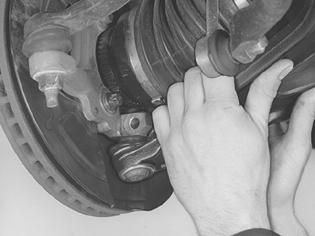

Move the ball joint up and down by hand (or a jimmy bar can be used) until the ball joint detaches from the stub axle.
Install protective socket
9995562
on the ball joint.
Use holder
9995563
on the control arm when the ball joint is detached.
