Left drive shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

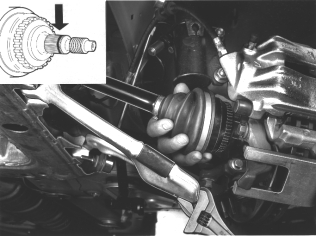

Fig 1: Identifying Drive Shafts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that ABS sensor gearwheel on driveshaft is free of dirt.

Push driveshaft in correctly so its circlip engages with differential slot. Check by carefully pulling on drive shaft inner joint.

Fig 2: Identifying Drive Shaft Spline

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall drive shaft in hub.

NOTE:

Apply metal adhesive, P/N 1161370-0, to the drive shaft splines as shown.

Twist MacPherson strut clear and insert driveshaft in hub. Use a socket wrench to hold suspension arm down.

Install a new driveshaft nut (hand-tight only).

NOTE:

Grease nut threads and flange.
