Installing the drive shafts: Install:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

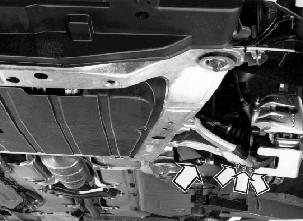

Fig 1: Locating Link Arm/Ball Joint Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Suspension arm to ball joint. Use new nuts.
NOTE:
Check that ball-joint seating in suspension arm is clean and free of grease.

Tighten from inside and out to 18 Nm +120° .

, use a protractor 9512050 .

Apply rustproofing agent to area between ball joint, suspension arm and nuts correctly and precisely. Use rustproofing agent P/N. 1161432-8.

Link arm to anti-roll bar with new nuts, tighten to 50 Nm (37 ft. lb.).
