Install the drive shaft into the transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

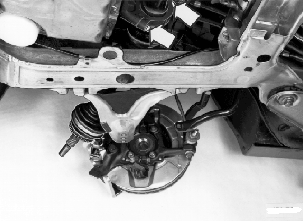

Fig 1: Identifying Drive Shaft Installed Into Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Take care not to damage driveshaft seal or bellows (gaiter).

Right drive shaft

Replace bearing cap. Tighten to 25 Nm .
Install cover under engine. (Earlier models only.)
