Removing the drive shaft: Remove:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

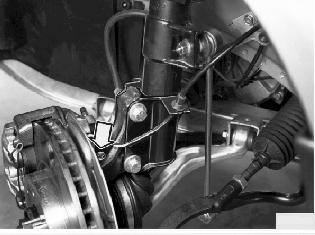

Fig 1: Locating ABS Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

the front wheel.
the ABS-sensor from the wheel spindle.

NOTE:

Do not separate the connector halves

Fig 1: Locating Link Arm/Ball Joint Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

the link from the anti-roll bar.
the nuts that hold the link arm/ball joint.

Unhook the link arm from the ball joint. Be careful with the ball joint's gaiter.

The following applies if only the right drive shaft is to be removed:

Remove the splash guard under the engine. (Only earlier version.)
