Remove the constant velocity joint from the shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

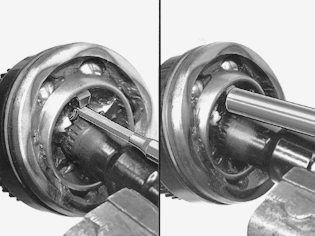

Fig 1: Identifying Constant Velocity Joint Removal From Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pry the lock ring out of the groove and position a drift, as described above, between the lock ring lugs.
Tap out the inner ring on the shaft a bit so that the lock ring is held open.
Use a brass drift to tap out the constant velocity joint.

CAUTION:

Only tap out the inner ring so as not to damage the bearing race or outer ring.

Remove the lock ring from the joint.
