Greasing Auxiliaries Belt Tensioner

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

The auxiliaries drive belt automatic belt tensioner should be greased every 45,000 kilometers or when noisy

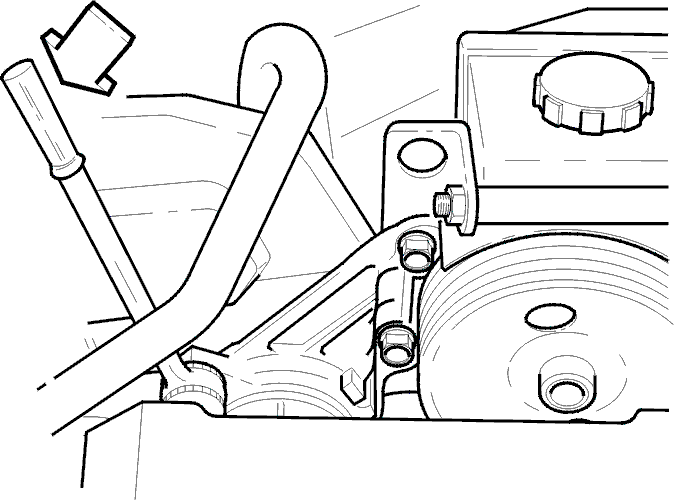

Fig 1: Removing Load From Belt Using Jointed Socket Wrench With 3/8-Inch Mounting On Belt Tensioner

GLL118529

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove auxiliaries drive belt

Use jointed socket wrench with 3/8-inch mounting on the belt tensioner and remove load from belt.

Remove drive belt.

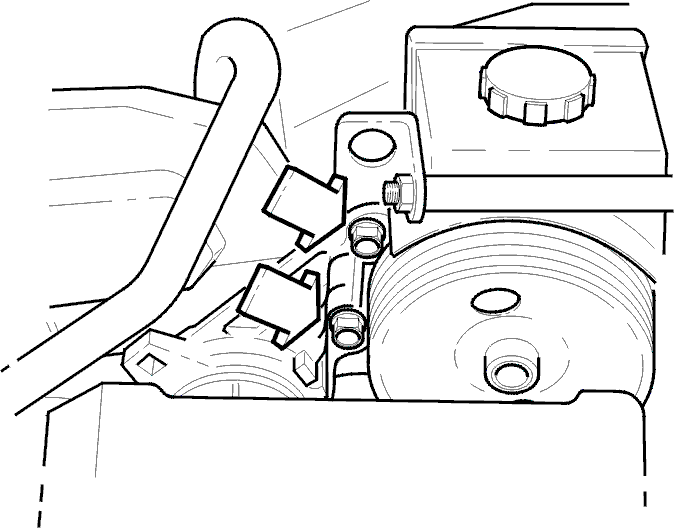

Fig 2: Identifying Belt Tensioner Screws

GLL118528

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tensioner

Slacken off two belt tensioner screws and remove the belt tensioner.

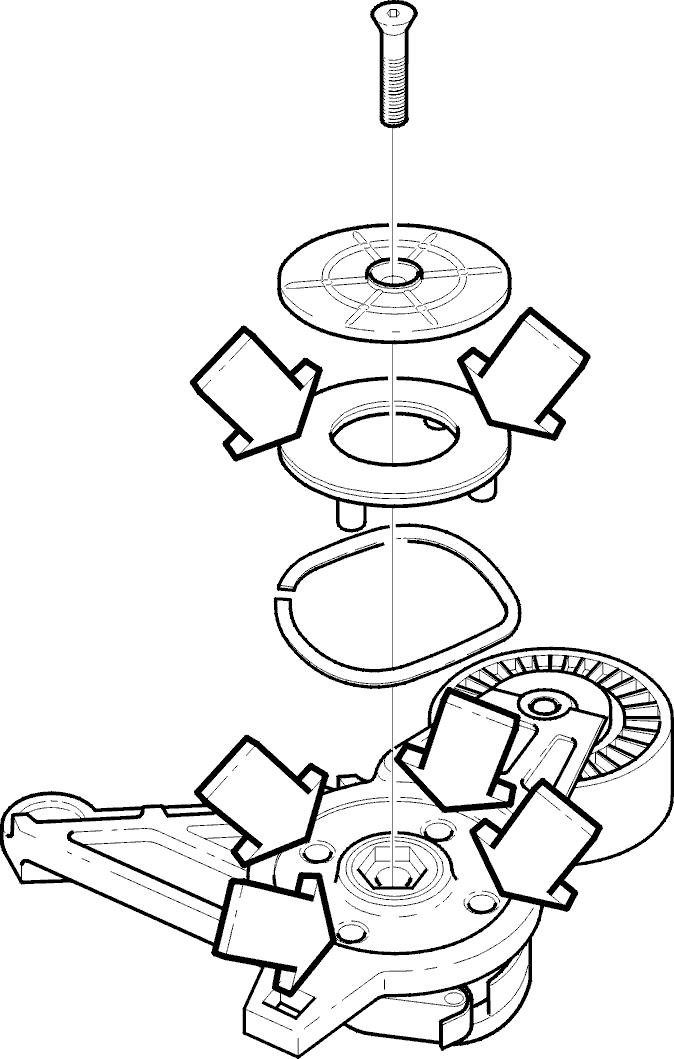

Fig 3: Identifying Belt Tensioner Friction Plate, Cover, And Spring Holes

GLL118525

Courtesy of VOLVO CARS OF NORTH AMERICA.

Greasing the automatic tension roll

Remove the tensioner center screw and disassemble as illustrated.

Apply grease P/N 11 61 246-2 (50g) or 11 61 247-0 (500g) between the friction plate and the cover, and in the four holes for the spring. (as arrowed)

Assemble the tensioner. Tighten center screw to 20 Nm .

Fig 4: Identifying Belt Tensioner Screws

GLL118528

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the tensioner

Torque to 20 Nm .

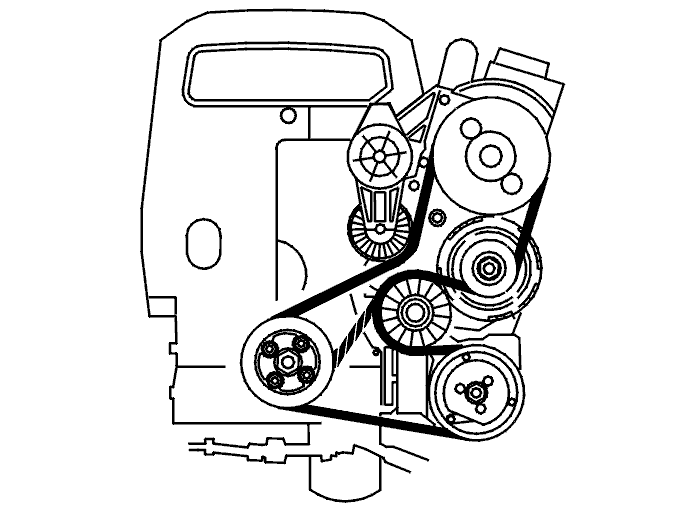

Fig 5: Identifying Drive Belt Routing

GLL118526

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install drive belt

Place belt around crankshaft.

Then around air conditioning (A/C) compressor, idler pulley, generator (GEN) and power steering pump.

(Scored line displays belt routing without air conditioning (A/C).)

Turn the belt tensioner with the jointed socket wrench and install the belt.

Check function
