Passenger Compartment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

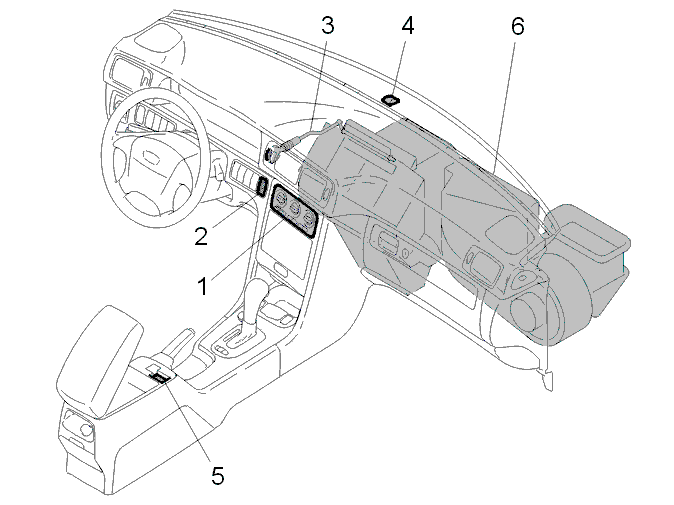

Fig 1: Identifying Passenger Compartment Components
GLL127547Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Climate control system.
  2. Passenger compartment temperature sensor with built-in fan (ECC).
  3. Airmix damper.
  4. Sun sensor (ECC).
  5. Data link connector (DLC).
  6. Climate control unit/climate unit
