Engine Compartment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

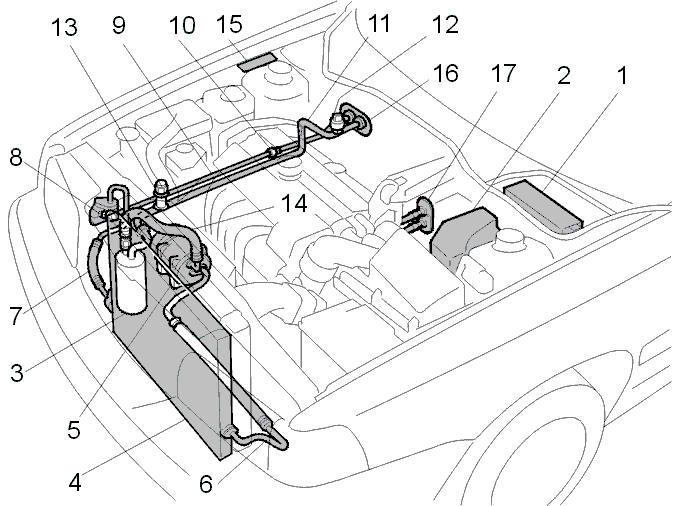

Fig 1: Identifying Engine Compartment Components
GLL127549Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Fusebox.
  2. Main fuse box
  3. Receiver/Drier.
  4. Condenser/evaporator
  5. Compressor.
  6. Refrigerant pipe/hose; compressor - condenser.
  7. Refrigerant pipe/hose; condenser - member
  8. Pressure switch.
  9. Refrigerant pipe; member - evaporator.
  10. Expansion valve.
  11. Refrigerant pipe; evaporator - Receiver/Drier.
  12. Pressure switch (Pressostat).
  13. Service valve (draining/filling).
  14. Refrigerant pipe/hose; Receiver/Drier - compressor
  15. Specifications table.
  16. Refrigerant pipe connection: to/from climate control unit.
  17. Coolant pipe connection; to/from climate control unit.
