Climate Unit

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

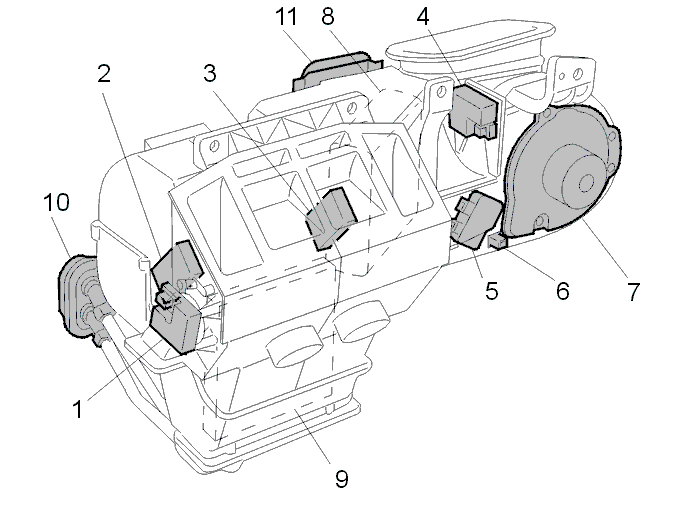

Fig 1: Identifying Climate Unit Components
GLL127548Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Damper motor air distribution.
  2. Damper motor temperature left (ECC).
  3. Damper motor temperature right (ECC).
  4. Damper motor recirculation.
  5. Power unit blower fan (ECC)/Fan resistor (MCC).
  6. Outside temperature sensor.
  7. Blower fan.
  8. Evaporator.
  9. Heater unit.
  10. Coolant pipe connection; to/from engine compartment.
  11. refrigerant pipe connection: to/from engine compartment.
