Instructions For Tracing Agent Injector

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: On newer filling/draining/vacuum pumping stations there is a reservoir for injecting oil. It can be used for filling with fluorescent tracing agent before filling with refrigerant and after vacuum pumping.

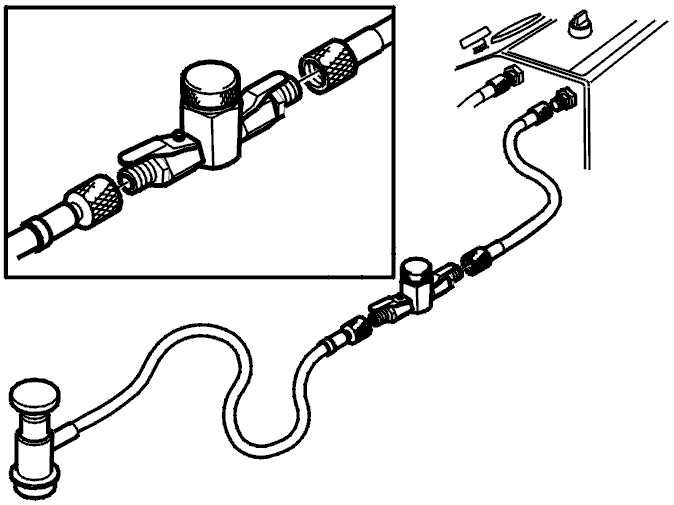

Fig 1: Drainage And Filling Valve With Injector And Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

The tracing agent injector is manufactured for use with the draining/recycling station.

The tracing agent injector has two threaded mounting holes to secure it to the draining/recycling station. Once connected, the injector is permanently attached.

To install the tracing agent injector, see Installing the tracing agent injector .
