Removing the B+ cable
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

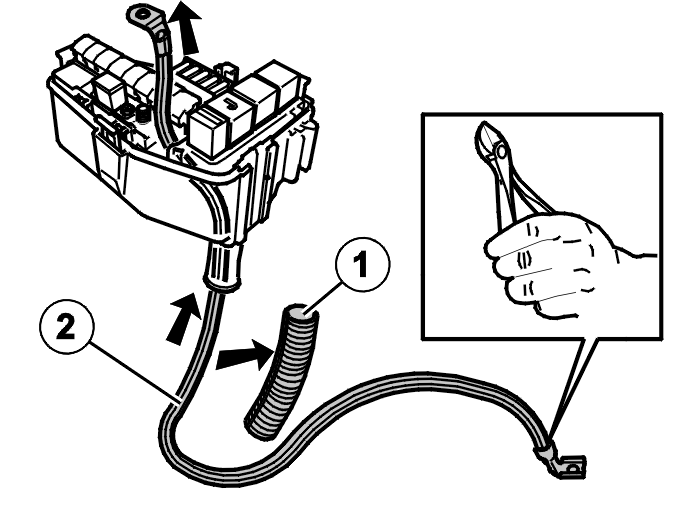

Remove:
- the protective tube (1) from around the B+ cable (2) between the cable duct and fusebox
- any tape from around the cable harness.
Cut off the front cable terminal on the B+ cable.
Pull up the cable through the rubber grommet.
