Exposing the B+ cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

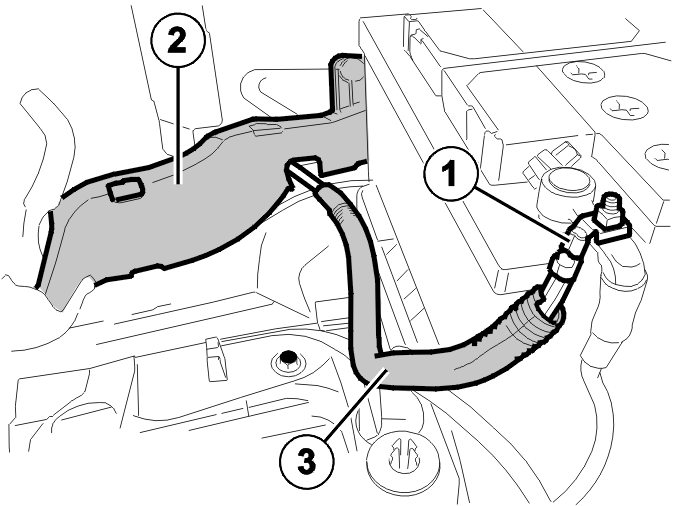

Fig 1: Identifying B+ Battery Cable, Protective Sheath On Cable, And Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the B+ cable (1) from the battery positive lead.

Remove the protective sheath (3) on the cable between the battery and the cable duct (2).

Remove the fusebox from the bracket on the spring strut turret.

Remove:

the nut holding the cable duct at the spring strut turret
the tie straps for the wiring in the cable duct. Expose the B+ cable.
