Installing the fuse holders

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

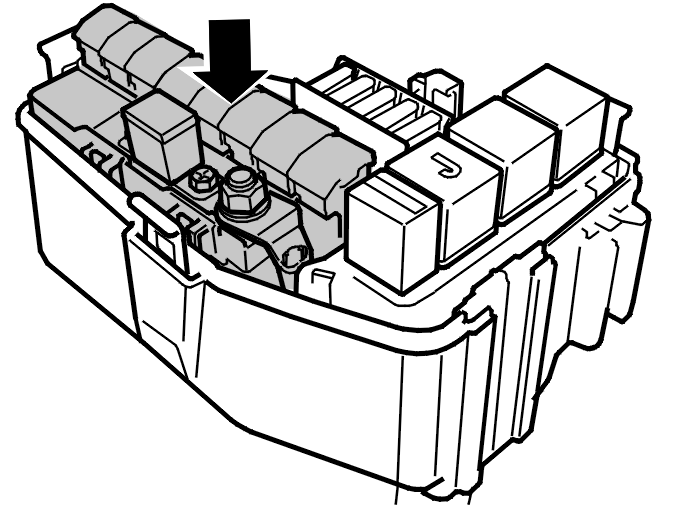

Fig 1: Identifying Fuse Mountings In Fusebox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the holders in the fusebox.

Check that the wiring under the holders is not trapped.

Install:

the protective tube (2), illustrated above, around the cable harness between the fusebox and the cable duct
insulation tape around the protective tube and the rubber grommet in the same places as before removal.
