Choose the terminal removal tool with the correct width

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

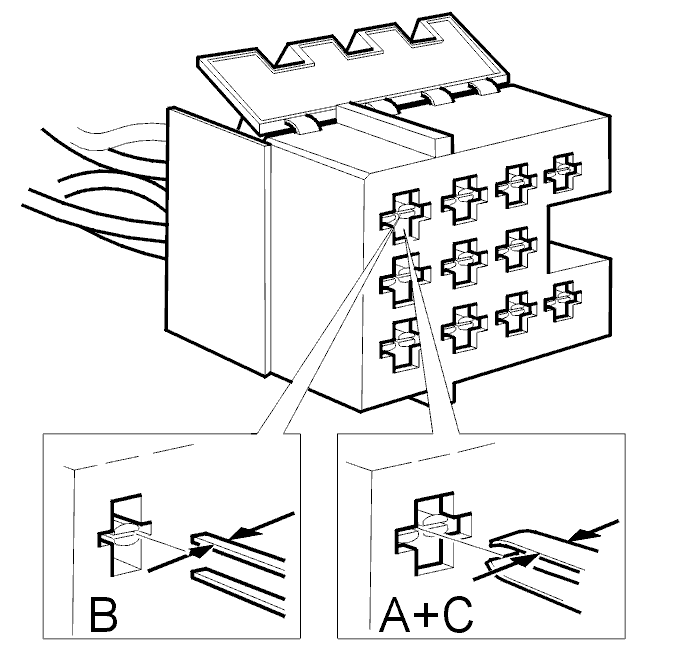

Fig 1: Identifying Two Sizes Of Cavity Opening

Courtesy of VOLVO CARS OF NORTH AMERICA.

There are two sizes of cavity opening.

See the example in the illustration.

Select the terminal removal tool with ends which match the extraction groove in the cavity opening.

The narrow ends are 0.9 mm wide.
The broader ends are 1.6 mm wide.

Press the cable terminal in the cavity forwards as far as it will go. This will free the locking tab from the cavity catch.

Insert the terminal removal tool in the groove over and under the cable terminal. Extract the cable terminal.

Always follow the instructions in section Using terminal removal tools . These instructions give the correct working procedure.

Proceed to chapter for New cable terminal and Seal SWS and plug instructions about how to crimp a new cable terminal.
