Zeroing Contact Reel

WARNING: This page is about a different car, the 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

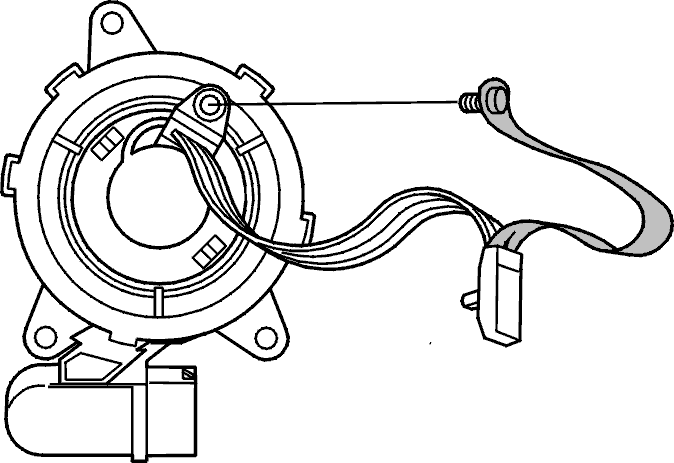

Fig 1: Identifying Screw From Contact Reel Lock Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove screw from contact reel lock position.

Fig 2: Turning Contact Reel Fully To Left

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the contact reel fully to the left.

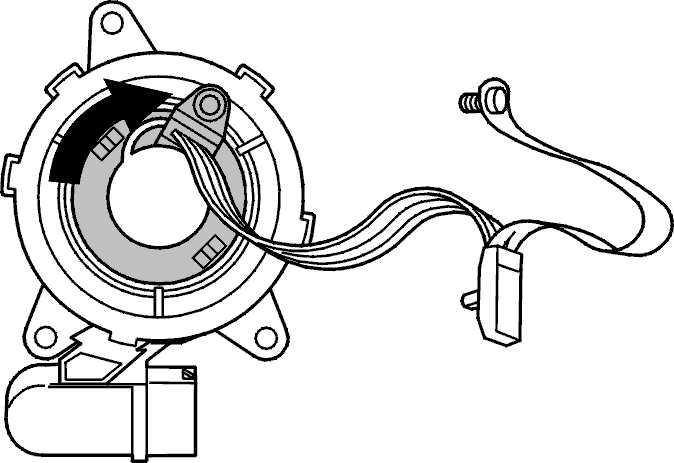

Fig 3: Turning Contact Reel To Right

Courtesy of VOLVO CARS OF NORTH AMERICA.

First turn the contract reel back two (2) full turns to the right. Then continue turning the contact reel in the same direction, three quarters (3/4) of a turn to the screw hole.
The screw hole should be over the lock position "1 o'clock" as illustrated.

Fig 4: Identifying Contact Reel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install screw in contact reel lock position. The contact reel is now zeroed and locked (secured).
