Secure the SIPS bag

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

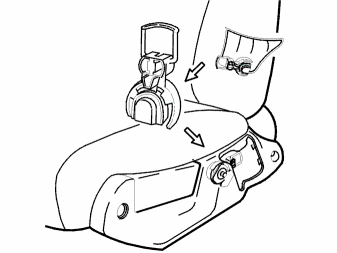

Fig 1: Identifying Secured SIPS Bag

Courtesy of VOLVO CARS OF NORTH AMERICA.

Before starting service operations, lock the SIPS bag with the transport safety device according to the following:

Remove:

the panel on the control panel
the transit safety catch from the inside of the panel.

Install the transit safety catch in the sensor module.
