Convertible (1998-2005)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

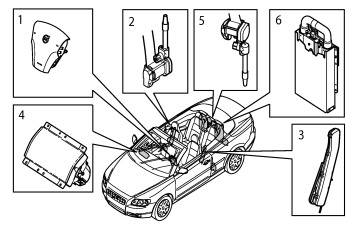

Fig 1: Location Of SRS Components - Convertible (1998-2005)
GLL161379Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Driver airbag
  2. Pyrotechnic seat belt with seat belt pre-tensioner, front seats
  3. SIPS bag (mechanically activated MY 1998, electrically activated MY 1999-)
  4. Passenger airbag
  5. Seat belt with pyrotechnic seat belt pre-tensioner, rear seat
  6. ROPS (mechanically activated no pyrotechnics) is located behind the head restraint on the rear seat.
