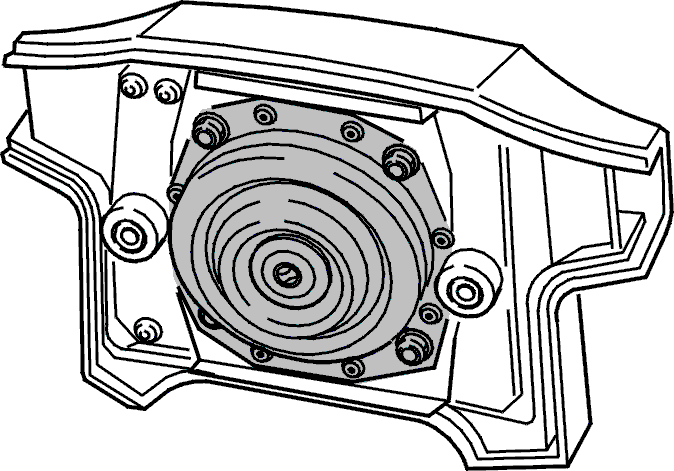

Handling non-deployed airbag modules/pyrotechnic seat-belt tensioners: Handling
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Non deployed airbag modules/pyrotechnical seat belt tensioners must not be deployed either in place in the car or when removed.
Removal must be carried out in accordance with
- See After a collision in which the SRS system has been activated .
- See Steering wheel module, steering wheel and contact reel, replacement .
- See Steering wheel module, replacement .
- See Adjusting steering wheel position .
- See Passenger module, replacement .
- See Seat-belt tensioners, replacement .
- See Seat belt buckle front seat and pyrotechnical seat belt tensioner, replacement .
- See Sensor module, replacement .
- See Knee bolster, replacement .
- See Removing glass splinters .
WARNING:
Airbag modules/pyrotechnical seat belt tensioners must never be taken apart, repaired or transferred to another vehicle.
WARNING:
Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected non deployed airbag/pyrotechnical seat belt tensioner. This could deploy the airbag/pyrotechnical seat belt tensioner.
Replaced airbag modules/pyrotechnical seat belt tensioners should be returned to Volvo in accordance with current procedures.
