Adjusting front edge of bonnet

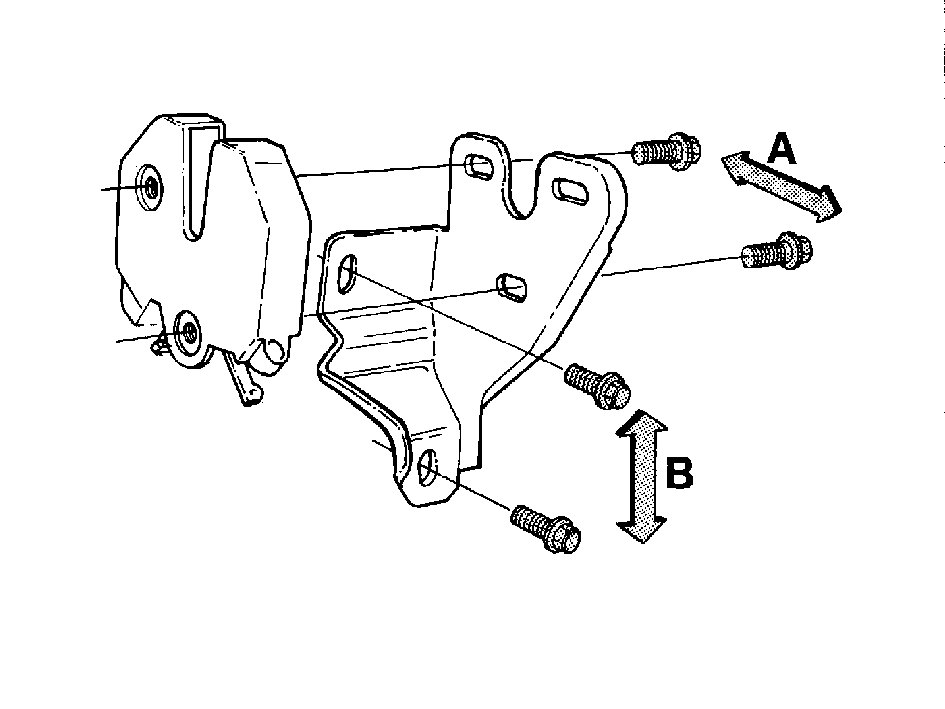

Fig 1: Adjusting Front Edge Of Bonnet
GLL121851Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust up and down with screws (B) in the oval holes in each hood catch to align the hood with the headlamps and fenders.

CAUTION:

Do not twist the hood.
