Reinstalling the engine and transmission

WARNING: This page is about a different variant/trim than selected.

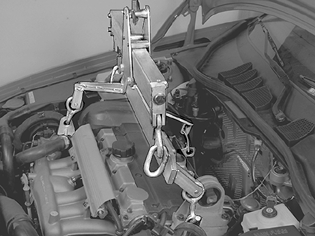

Fig 1: Identifying Lifting Yoke, Mounting Bracket, Lifting Eye 2268 And Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use lifting yoke 9992810 , mounting bracket 9995428 , lifting eye 9995464 and 2 hooks 9995185 .

Align the lifting yoke so that the weight of the engine is evenly distributed.

Adjust the hoist angle throughout the lift.

NOTE: Check that the drivetrain goes clear of the bodywork and any optional equipment.

Make sure that the wiring does not catch during the lift.

Tighten the nut of the front engine mounting.
