Removing the right-hand level sensor / pump

WARNING: This page is about a different variant/trim than selected.

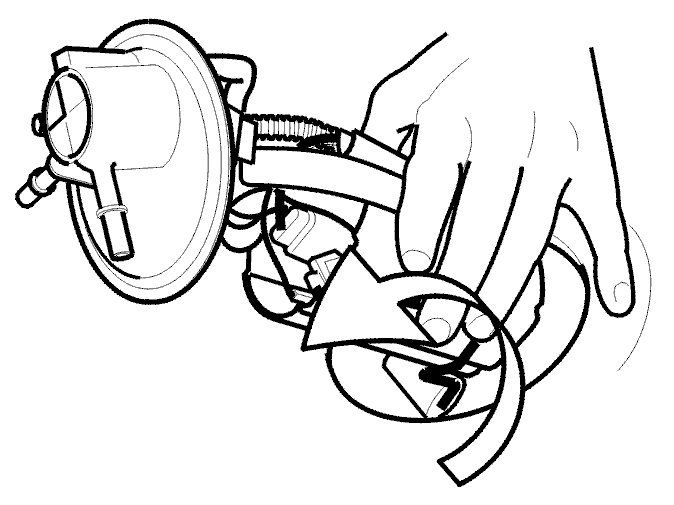

Fig 1: Gripping Right-Hand Level Sensor And Pumping Holder And Pinching Float So It Is Held In Its Lowest Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grip the right-hand level sensor and pump holder and pinch the float so that it is held in its lowest position.

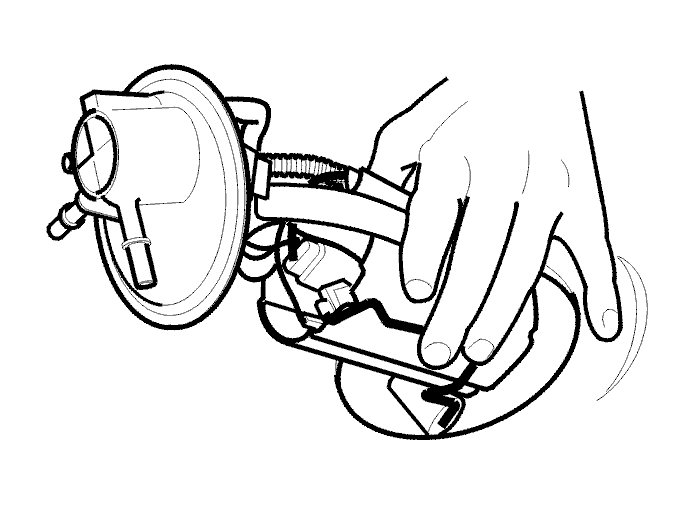

Fig 2: Pulling Holder Up And Removing

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Take care with the fuel tank.

Carefully and slowly pull up the holder. Carefully work the holder out.

Pull the hoses out from the tank without pulling up the entire wire from the right-hand hole in the tank.

NOTE:

It is extremely important that the float arm is not broken or bent.

Remove the wire from the old level sensor and pump ejector.
