Diagnostics, Fault-Tracing: Notes

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

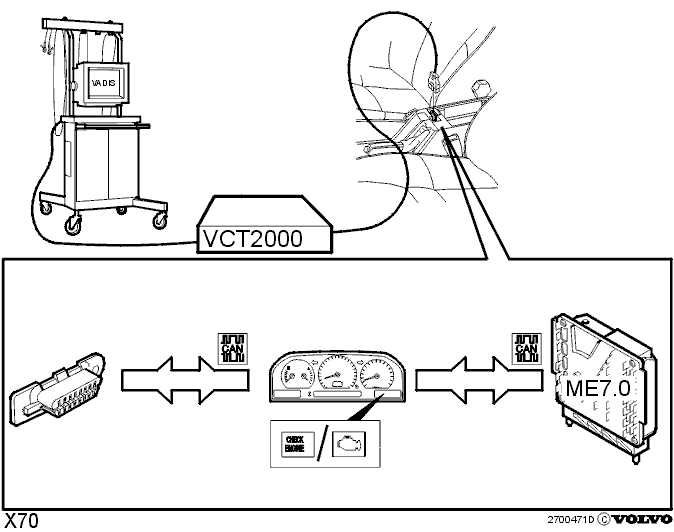

Fig 1: Identifying Fault-Tracing Diagnostics

Courtesy of VOLVO CARS OF NORTH AMERICA.

Diagnostics and fault tracing are carried out as before using VIDA.

However from the 1999 model year onwards the Volvo Scan Tool (ST) (which could only communicate serially via the data link connector (DLC)) has been replaced by a new communication unit called the VCT 2000 (Volvo Communication Tool 2000) which can communicate with the modules via the network.
