Install centering tool
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Install centering tool.
Use centering tool: 9995663 , , changed according to: Workshop Guide no. 213, with conversion kit: 9989742 .
- Remove black cone from centering tool.

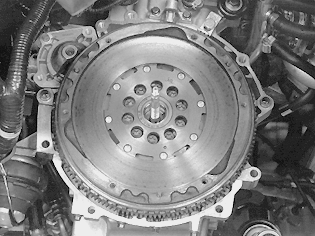

- Install centering drift in crankshaft center.
- Press in as far as possible.
- Use a wrench as a counterhold and then tighten the outer socket until the tool expander locks centering drift.
Make sure that centering drift is secure in crankshaft.
