Installing Control Cables On Climate Control
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

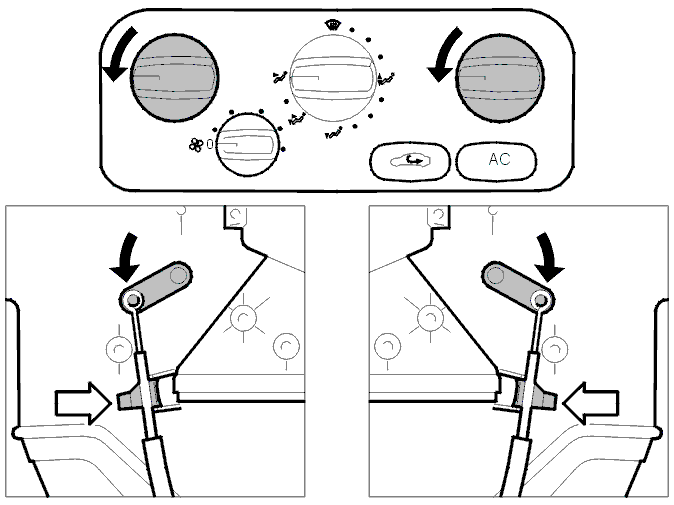

Fig 1: Identifying Control Cable Sleeve, Passenger Compartment Selector And Cable Sleeve In Cable Mounting
- Install the cable on the lever
- Turn the passenger compartment selector as far as possible
- Press the lever to its lower position
- Install the cable sleeve in the cable mounting.
