Removing the potentiometer

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Set the seat height adjustment to its uppermost position.

Remove the seat from the car according to Lifting the power seat in and out .

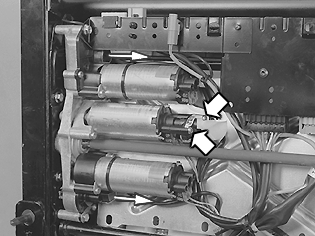

Fig 1: Identifying Connectors And Wiring
GLL126522Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connectors and wiring.

Fig 2: Identifying Potentiometer, Connectors, And Wiring
GLL126523Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws.

Install:

In reverse order.
