Noise from door lock when stopping / starting

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

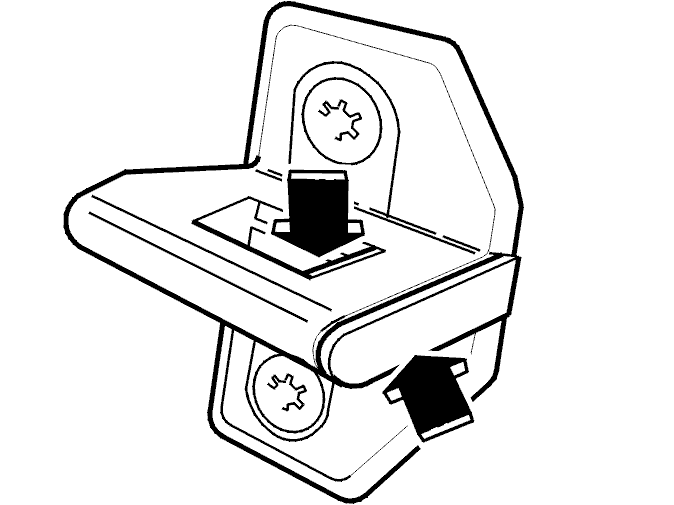

Fig 1: Identifying Grease Application Areas On Striker Plate
GLL126990Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a thin layer of grease, P/N 1161417-9, on the striker plate plastic components.

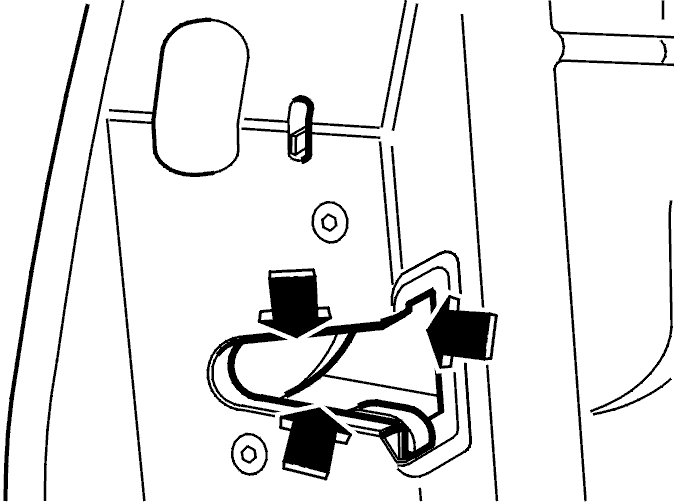

Fig 2: Identifying Grease Application Areas On Lock Disc
GLL126991Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a thick layer of grease, 1161417- 9, on the lock disc plastic components.
