Installing the drive shaft on the hub

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

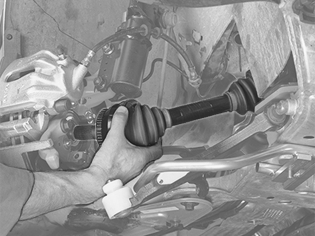

Fig 1: Identifying Drive Shaft On Hub
GLL109255Courtesy of VOLVO CARS OF NORTH AMERICA.

Use holder 9995563 to hold the control arm down.

Bend out the spring strut. Align the drive shaft in the hub.

Install the drive shaft screw by hand. Use a new  screw.

Remove the holder.

NOTE:

Take care not to damage the drive shaft boot.
