Installing the cable on the gear selector assembly

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

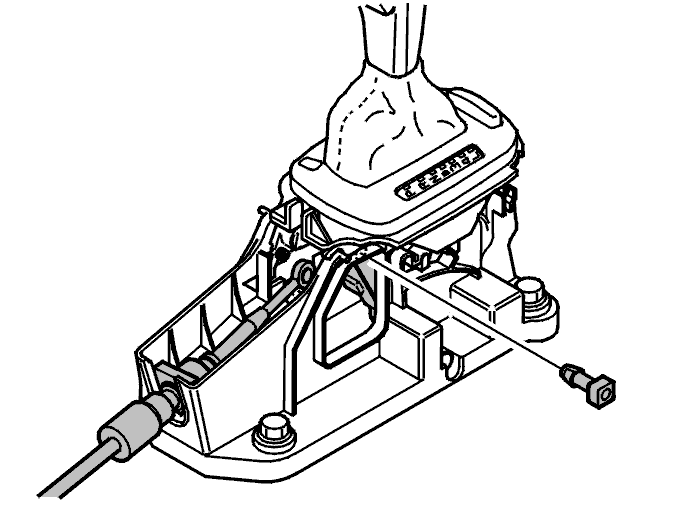

Fig 1: Identifying Cable Sleeve In Gear Selector Assembly And Cable On Gear Lever Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the cable sleeve in the gear selector assembly
the cable on gear lever arm with the shaft.
