Exposing the control system cover

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

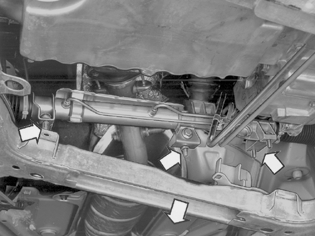

Fig 1: Identifying Sub-Frame And Steering Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the sub-frame.

NOTE:

Ensure that the steering gear and the collision protection release from the frame.

Lower the sub-frame to expose the control system cover.
