Right-hand side

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

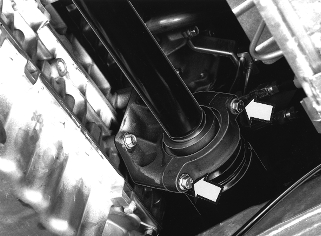

Fig 1: Identifying Splash Guard And Bearing Cap For Drive Shaft Pilot Bearing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The splash guard under the engine
Bearing cap for the drive shaft pilot bearing.

Loosen the drive shaft.

Press the inner part of the shaft and at the same time fold out the spring strut. Let the end of the drive shaft rest on the pipe running from the steering gear.
