Installing the throttle body

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

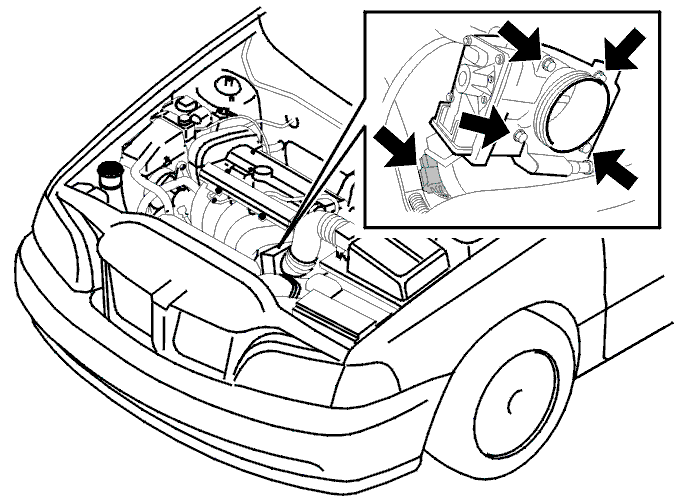

Fig 1: Identifying Throttle Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

starter motor, tighten with 40 Nm against the transmission and 30 Nm for the bracket against the engine block
the new throttle body's connector with the cable on the outside of the starter motor bracket.

Secure the cable so that the risk of damage and contact separation is eliminated.

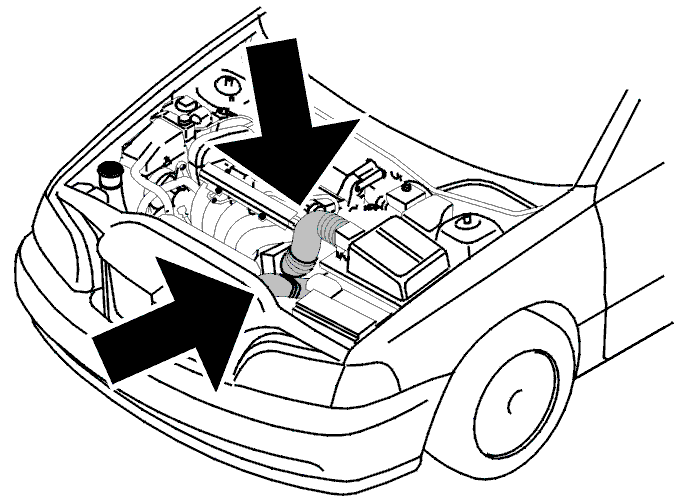

Fig 2: Identifying Air Intake Pipes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

new throttle body with new gasket . Tighten with 10 Nm
intake manifold between air filter and throttle body and connected hoses
the intake pipe between the front cover plate and the air cleaner (ACL).
the cable to the battery's negative terminal.
