Installing cooler unit

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

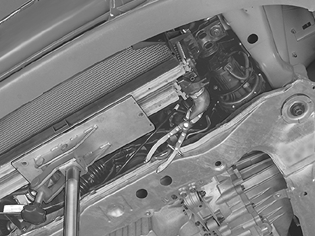

Fig 1: Identifying Lower Radiator Hose With Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the radiator assembly on the mobile jack's universal plate 9995972 .

Hold cooler unit and carefully raise it into position in the bodywork.

Install both the mounting screws and tighten to 25 Nm .

Install

lower radiator hose. Remove lock grip pliers
screw for engine wiring cable duct mounting at front edge of subframe
front splash guard and air baffles.

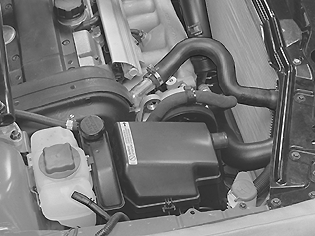

Fig 2: Locating Upper Radiator Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

upper radiator hose. Remove lock grip pliers
hose to expansion tank. Secure hose with clips
the plastic pipe to the charge air cooler (CAC)
the condenser hoses at the compressor and at the drier.
