Install the inner ring in the bearing race.

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

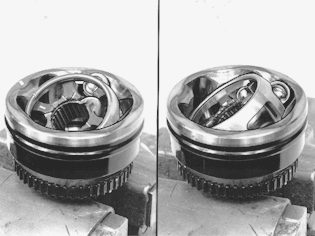

Fig 1: Identifying Ball Bearings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Line up the markings with each other. Install a ball bearing.

NOTE:

The location of the ball bearings.

Turn the inner ring and the bearing race.
Position the ball bearings in the same position as before, one at a time.
