Installing windshield wiper arm

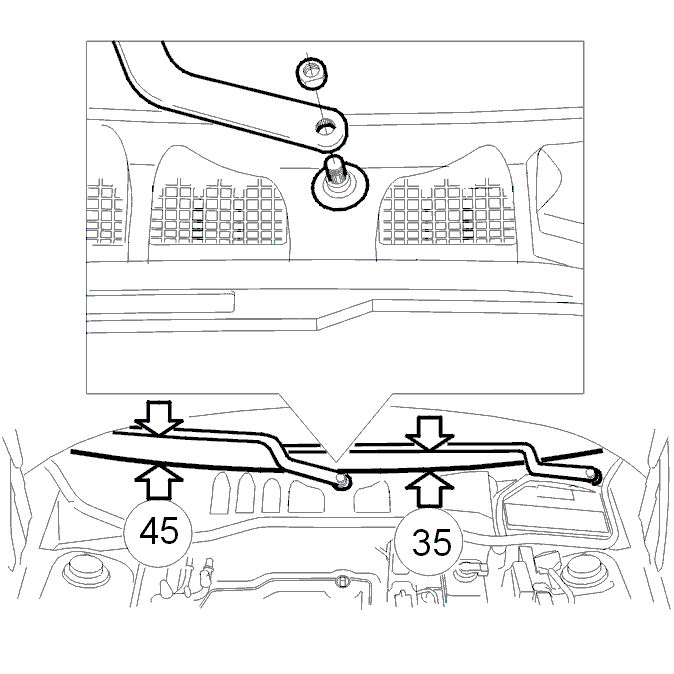

Fig 1: Identifying Wiper Arm Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• wiper arm
• nut loosely.

Adjust position of wiper arm as illustrated. The dimensions in the illustration are given in mm (in).

Tighten nuts to 16 Nm  (11.8 ft. lbs).

• Test windshield wiper function.
