Removal of cigarette lighter compartment

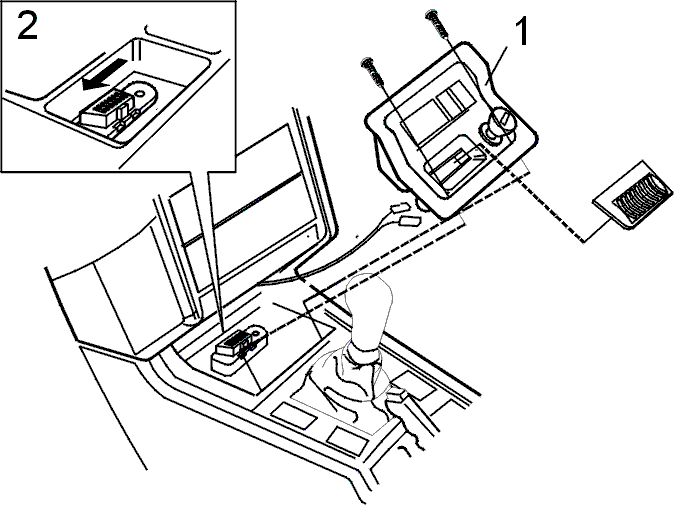

Fig 1: Identifying Cigarette Lighter Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• Cigarette lighter.
• OBD II cover.
• Screws (2 x Torx 20) from cigarette lighter compartment. Lift up cigarette lighter compartment (1).
• Two connectors from cigarette lighter socket and bulb holder.
• OBD II connector (2). Push to one side and press out the connector through the cigarette lighter compartment.
