Removing pedal position sensor

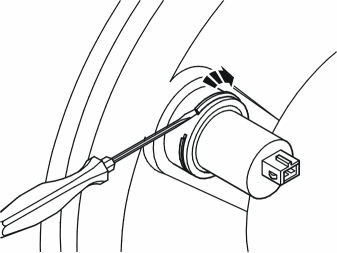

Fig 1: Slackening Off Snap Ring Around Mounting For Sensor Slightly By Inserting A Narrow Screwdriver Or Wedge
Disconnect the connector from the sensor.
Slacken off the snap ring around the mounting for the sensor slightly. Insert a narrow screwdriver or wedge. Press one end of the snap ring in approximately 10 mm. Press radially backwards in the groove for the snap ring.
Remove the sensor and the O-ring.
