Remove the brake pedal

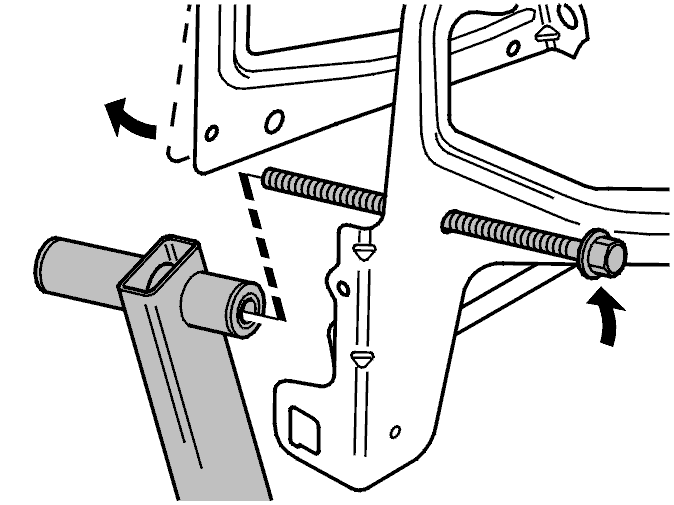

Fig 1: Removing/Installing Brake Pedal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull out the brake pedal screw as far as possible.

Press out the brake pedal bracket a little. Turn the pedal downwards and pull out the screw. The screw remains in the bracket.

NOTE:

Take care that the stop lamp switch is not damaged when removing the brake pedal.

Check stop lamp switch
