Removing plenum chamber

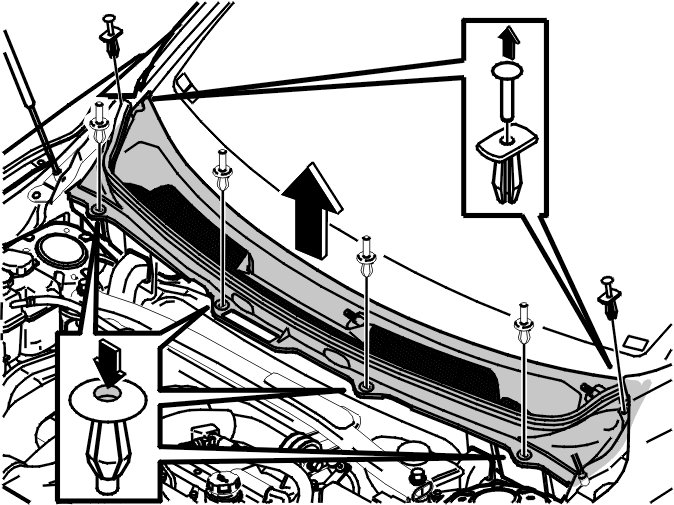

Fig 1: Identifying Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the windshield wipers. See Wiper arm / blade windshield, replacing
• the 6 clips.

Press the center section of the rivet head on the four front clips.

Lift up the center section of the other two clips.

Lift out the cowl.
