Removing rear bumper

Fig 1: Identifying Bumper, Screws And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the rear floor hatch
• the front floor hatch
• the battery. See: Battery, replacing (model year 2004)
• the center console locker or the subwoofer
• the screws (2), 1 on each side, in the upper edge of the side
• the screws (3), 1 per side
• the 4 clips on the underside of the casing.

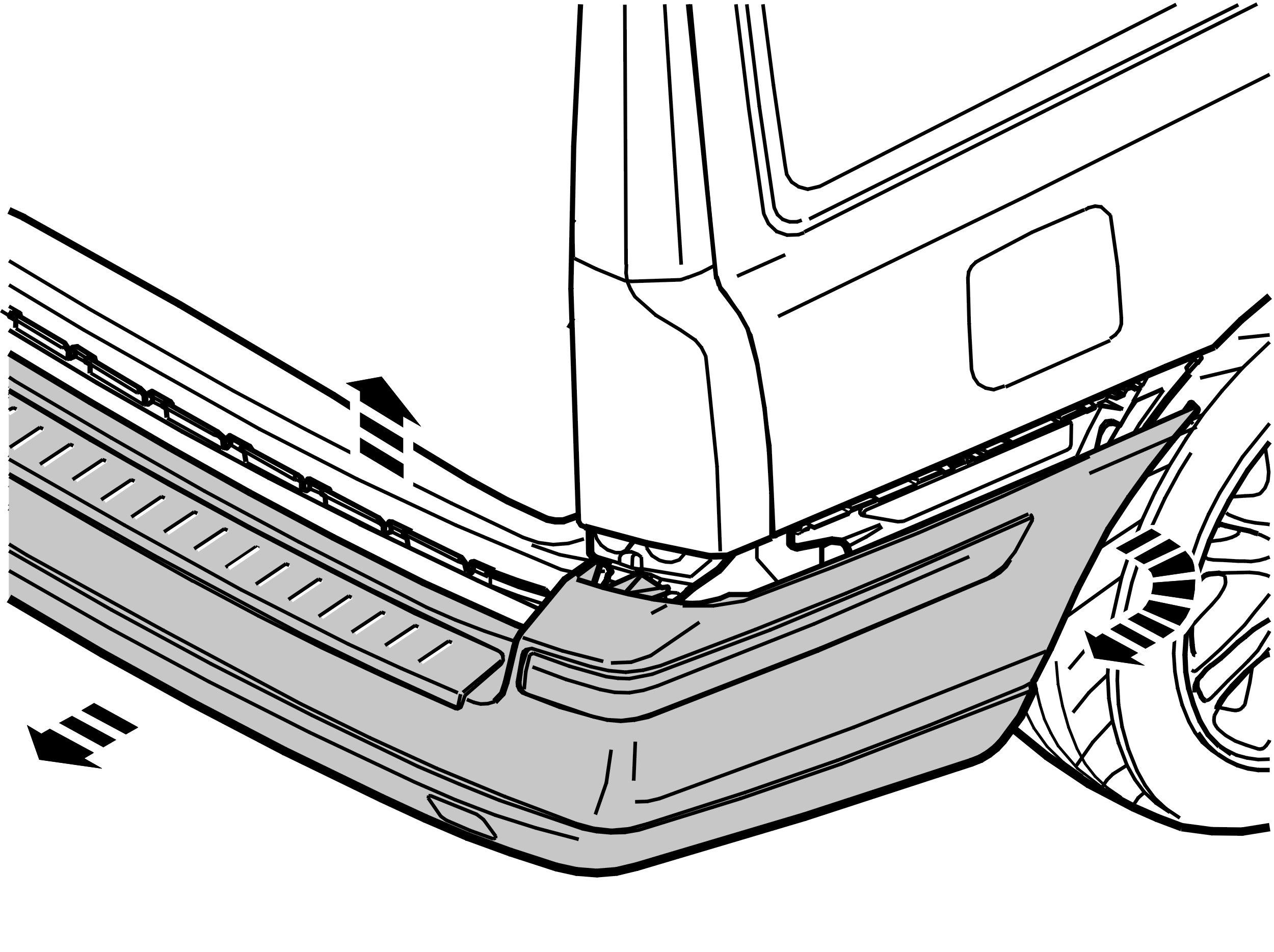

Fig 2: Identifying Casing Detachment And Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the sides of the casing out. Detach the casing at the top. Then pull the casing straight back.

HINT: This operation is easier with two people.

Remove the cable harness for the parking assistance sensors (if applicable). See: Parking assistance sensor rear, replacing .

Fig 3: Identifying Sound Seals And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the sound proofing (1) and the 4 nuts.

HINT: Use butyl tape to secure the nuts in the socket. Otherwise the nuts are easy to lose.

Disconnect the connector for the antenna. See: Antenna bumper rear, replacing .
