Secure cable harness in bumper rail

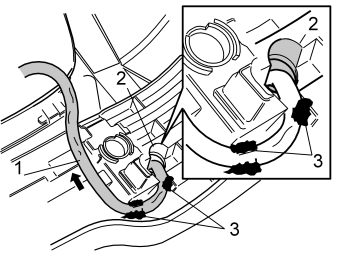

Fig 1: Identifying Cable Harness Secured In Bumper Rail

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the bumper railing in the bumper cover
Pull up the cable harness (1) from the hole (2) for the sensor in the bumper rail
Press the bumper rail into place in the bumper cover, ensure that all catches engage
Secure the cable harness in the bumper rail using pieces of butyl tape (3).
